Rugged 3U Design Provides Global Solutions for Wayside Signal and Communication Installation
Product News Tuesday, August 2, 2016: EngNet - Engineering Network

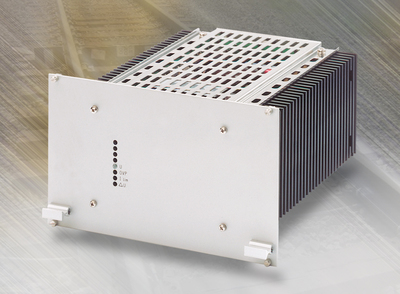

Schaefer, Inc. announces the C600 Series of DC-DC and AC-DC converter modules. The highly-reliable, compact and ultra-rugged 3U design uses industrial-grade components and provides a high-density, space saving solutions for wayside signal and communication installations globally. These units are ideal for redundant systems with two units per 19” sub-rack.
The highly efficient C600 Series delivers up to 500W of power and offers DC input voltage range of 10-380VDC with seven input range choices. AC input options are single-phase 115VAC or 230VAC (with or without PFC) or three-phase inputs of 3x200VAC. These modules are single output and are available in 12 standard ranges from 5-400VDC. All outputs are adjustable and tightly regulated to 0.2% (load) and 0.1% (line). Featuring natural convection cooling and a standard operating temperature range of –20°C to +75°C (derate 2.5% / °C from +55°C), with an option for -40°C to +75°C.
Modules are housed in an industry-standard 3U form factor for insertion into 19” sub-racks or optional wall, chassis and DIN-Rail mounting are available. Schaefer can also provide 19” sub-racks wired to customer requirements to complete the installation.
All models have comprehensive protection circuitry including over-voltage protection, current limit protection on the output, and thermal shutdown with auto restart. Options include parallel/redundant operation, inhibit, Power-OK/DC-OK alarms, system reset signaling, active current sharing and programming/monitoring functions, etc. Battery charger modules are available (B600 models). Mechanical and electrical modifications to standard modules are available upon request.
