Direct-Drive High Pressure Plunger Pump Unit
Product News Thursday, June 19, 2008: Cat Pumps

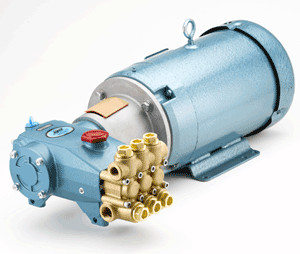

CAT PUMPS’ new close-coupled plunger pump features both exceptional performance and a space saving footprint. This compact, single-extended shaft 7CP plunger pump delivers 10 GPM and mounts onto a motor using a bell housing and flexible coupling. Two close-coupled, motor-pump units are available for either 1460 PSI or 2000 PSI performance:
7CP6110BH103 motor-pump unit
10 GPM, 1460 PSI, 10 HP 3 PH
7CP6110BH153 motor-pump unit
10 GPM, 2000 PSI, 15 HP 3 PH
Features and Benefits
- Space saving compact footprint
- High performance premium STG V-Packings offer extended seal life
- Forged brass high strength manifold for durability
- Dipstick for rapid oil level check
Typical Applications
- Coolant flushing system
- Dual Gun Prep unit
- Multi-gun truck wash system
