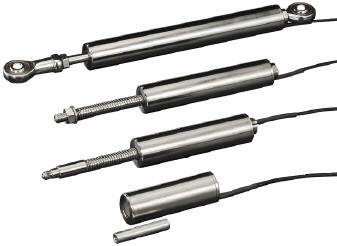

S-Series Displacement Transducers

S-Series Displacement Transducers

Product News Monday, December 12, 2005: Solartron Metrology Ltd

The S-Series of Displacement Transducers is the culmination of many years’ experience gained from Solartron Metrology’s highly successful Mach One range plus careful note of market feedback. The result is a totally new range of transducers that is better able to satisfy today’s demanding manufacturing and research applications.

The need to transfer signals from the transducer to data acquisition and control systems reliably, quickly and cost effectively has been catered for with a complete new range of onboard or external analogue signal conditioning units and Orbit compatible modules for digital versions.

The Stainless Steel body with improved sealing to IP67 coupled with new polymer guides with rigid carriers, ensure that the transducers keep working accurately and reliably, especially in wet and corrosive conditions.

An unusually large bore to core clearance is maintained throughout the range, even on transducers fitted with onboard signal conditioning, enabling easier installation and making the assembly more forgiving of misalignment.

Features
  • Digital options with 5 mm to 150 mm travel
  • Analogue options with ±2.5 mm to ±75 mm travel
  • <0.2% Linearity FSO analogue option
  • Rugged 19 mm diameter stainless steel body
  • Rigid stainless steel carriers
  • IP67 protection
  • Improved range to body length ratio
  • Digital, AC, DC and 4-20 mA options
  • Large bore to core clearance
  • Wide range of accessories
